Trailer Mounted Portable Water Well Drilling Rig Machine

Place of Origin : CHINA

Brand Name : OEM

Certification : ISO,CE

Supply Ability : Based on the detailed quotation

Packaging Details : Wooden cases standard export package

MOQ : 1 set

Price : Negotiation

Type : Hydraulic Core Drilling Rig

Power Type : Diesel

Usage : Water Well

Voltage : 380V

Dimension(L*W*H) : 5520*2100*2200MM

Weight : 3.45TON

Application : water well

Bore diameter : 90-220mm

Bore depth : 150mm

For rock : 6-20F

Air pressure : 1.2-2.46Mpa

Air consumption : 11-25M3/MIN

Once promotion : 2000mm

Maximum height from the ground : 320mm

Port : QINGDAO PORT,TIANJIN PORT,SHANGHAI PORT,GUANGZHOU PORT

Delivery Time : 10-20 days working days

Payment Terms : T/T, L/C, T/T, Western Union

Contact Now

Trailer Mounted Portable Water Well Drilling Rig Machine

Trailer mounted portable water well drill rig machine using rotary drilling method for sale is lightweight, efficient, multi-purpose drilling equipment, which can use air,foam,or mud rotary for percussive drilling according to different textures.Trailer mounted portable water well drill rig machine using rotary drilling method for sale is widely used in industrial and agricultural water conservancy projects, such as drilling wells, testing wells or other exploration boreholes, in particular, in drilling hole for geothermal heating.Trailer mounted portable water well drill rig machine using rotary drilling method for sale can also meet the engineering basis for reinforcement, loose gravel drilling, rock formation drilling and a variety of engineering requirements.

Bore Diameter(mm)

90-220

Bore Depth(m)

150

For Rock(F)

6-20

Air Pressure (Mpa)

1.2-2.46

Air Consumption( m³/min)

11-25

Once Promotion( mm)

2000

Maximum Height From The Ground ( mm)

320

Rotation Speed(r/min)

0-70

Rotation Torque( NM)

2200

Host Power (KW)

45

Dimension(L*W*H)

5520*2100*2200

Weight( Kg)

3450

Trailer Mounted Portable Water Well Drilling Rig MachineTrailer Mounted Portable Water Well Drilling Rig Machine


Product Tags:

Rotary Drilling Rig Equipment



Trailer Mounted Rotary Drilling Machine



Water Well Drilling Rig Machine


Quality Trailer Mounted Portable Water Well Drilling Rig Machine for sale

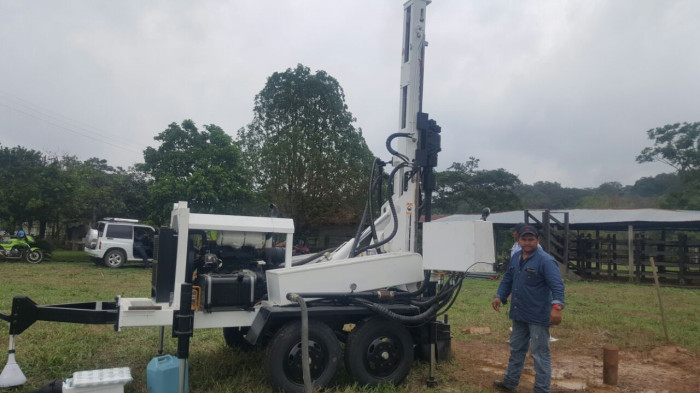

Trailer Mounted Portable Water Well Drilling Rig Machine Images
