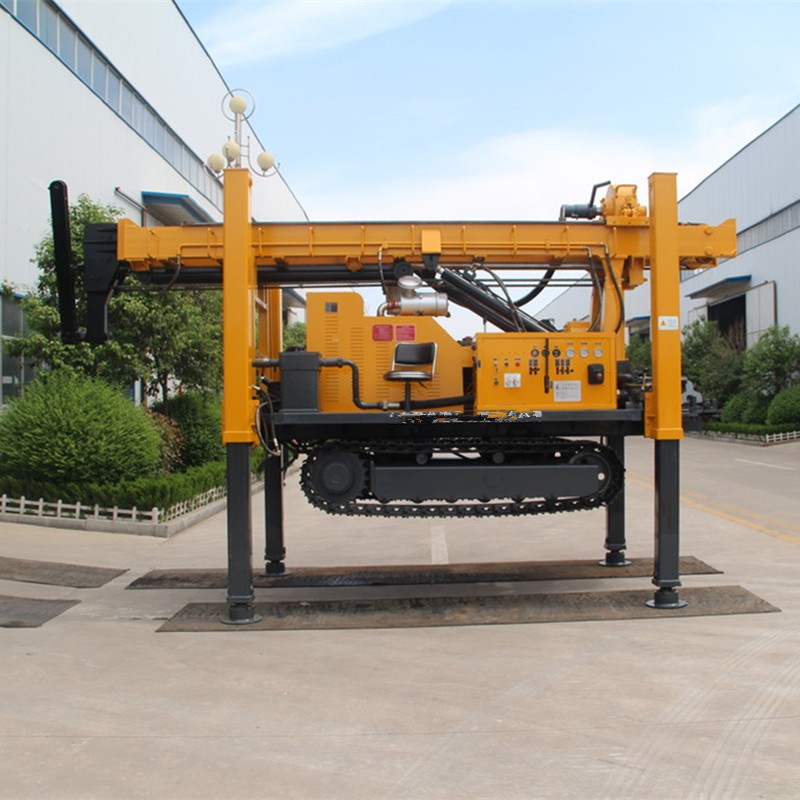

Hudraulic 300m DTH Drilling Rig Machine For Water Well

Place of Origin : CHINA

Brand Name : OEM

Certification : ISO,CE

Supply Ability : Based on the detailed quotation

Packaging Details : Wooden cases standard export package

MOQ : 1 set

Price : Negotiation

Type : Down The Hole Drill Rig

Power Type : Diesel

Usage : Water Well

Voltage : 380V

Dimension(L*W*H) : 6.1m*2.16m*2.65m

Weight : 7800kg

Applicable Industries : Hotels, Manufacturing Plant, Farms, Home Use, Retail

Core Components : Motor, Pressure vessel, Pump, Gear, Bearing, Engine, Gearbox

Key Selling Points : Easy to Operate

Name : dth driling rig drilling machine for water well

Application : Water well drilling/ core drilling

Drilling depth : 200m-300m

Drill bit : 115-254mm

DTH Hammer : DHD360

Air consumption : 16-30 m3/min

Pushing capacity : 35KN

lifting capacity : 75KN

Rotation speed : 17-22rmp

Rotation torque : 5500N.m

Delivery Time : 10-20 days working days

Payment Terms : T/T, L/C, T/T, Western Union

Contact Now

Hudraulic 300m DTH Drilling Rig Machine For Water Well

Main Features

1. Drills up to 200-300m deep, 250-350mm diameter, crawler mounted.

2. Can work with Air compressor OR Mud pump.

3. Fully hudraulic system, work with air compressor.

3. Drill fast in soft earth and in hard rock earth..

4. Mainly used for water well drilling,earth sample taking, mining exploration, rock falling fence, etc,

Product Application

water well DRILLING for farm irrigation, fresh water drinking, and any where need fresh water.

SPECIFICATIONS FOR air rotary drilling rig
Model	YT100	YT200
Drill depth	120m	200m
Drill diameter	115-254mm	1.05-2.45Mpa
Drill rod length	1.5m	3m
Diesel engine	37KW/2400RMP	76KW/2400RMP
Air consumption	16-30M3/Min	16-30M3/Min
DTH Hammer	DHD360	16-30M3/Min
Air pressure	1.05-2.45Mpa	1.05-2.45Mpa
Pushing capacity	27KN	35KN
Lifting capacity	40KN	75KN
Rotation speed	22-177RMP	22-177RMP
Rotation torque	3500N.M	5500N.M
distance from ground	250mm	22-177RMP
Climbing angle	20degree	20degree
Machine Size	3m1.2m2m	5.3m2.1m2.5m
Weight	1800kg	6000kg
Walking speed	2KM/Hour	20degree

Hudraulic 300m DTH Drilling Rig Machine For Water Well
